CIRCUITS

AIM:

  • to takeoff and follow published procedures that conform to the aerodrome traffic circuit;
  • avoid conflict with other aircraft; and
  • to carry out an approach and landing using the most suitable runway.



CONSIDERATIONS:

Review:

Taxi

Take-off

Landing



AIRCRAFT MANAGEMENT:

Right of way rules (ROW)

  • aircraft landing have ROW over aircraft taking off.
  • aircraft in the circuit has ROW over aircraft joining
  • follow at a safe distance, do not overtake or cut in front of other aircraft

All turns in the circuit direction

Controlled Aerodrome

  • perform a left-hand aerodrome traffic circuit unless otherwise authorised or instructed by ATC

Uncontrolled Aerodrome

  • perform a left-hand aerodrome traffic circuit unless the details published in the AIPNZ for the aerodrome specify a right-hand aerodrome traffic circuit

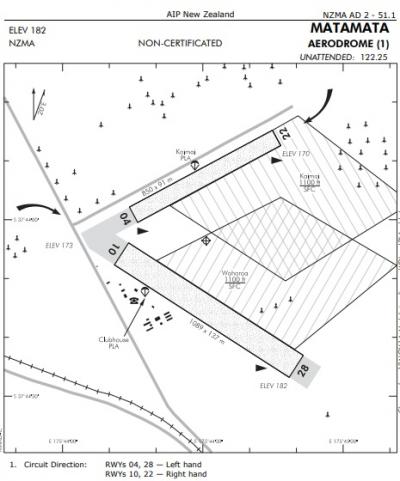

  • Right hand circuit indicated by a black arrow



Circuit Height

Controlled Aerodromes

  • the circuit height to be used when ATC is on watch is inserted on the aerodrome chart.

Uncontrolled Aerodromes

  • 1000 feet AGL unless otherwise prescribed.



HUMAN FACTORS:

LOOKOUT/LISTEN OUT

IMSAFE

Situational Awareness

  • of your position
  • of other aircraft in circuit
  • of joining aircraft

Landing Cues

Runway perspective

Mnemonics, Checklists



The Standard Aerodrome Circuit



The Legs of the Circuit

  • Upwind
  • Crosswind
  • Downwind
  • Base
  • Final



Wind Effect on the Circuit Legs

Upwind

  • headwind
  • reduced groundspeed

Crosswind

  • attempt to blow aircraft off track
  • nose into wind

Downwind

  • tailwind
  • increased groundspeed

Base

  • attempt to blow aircraft off track
  • nose into wind

Final

  • headwind
  • reduced groundspeed


Left hand unless promulgated

Circuit pattern - rectangular shape

Runways aligned degrees magnetic

QNH vs QFE

Depart at best rate of climb

Turn crosswind at 500' agl

Ref pts/tracking relative to the runway

Pre-landing checks

Radio calls and proper position

AIP - only D/W call required unless

Cues to turn base leg

Power settings depend on distance from threshold

Terms - threshold, upwind,

AIR EXERCISE:

1. Line up

  • lookout before entering runway
  • select Ref point at end of runway



2. Takeoff

  • keep straight with rudder
  • keep 'wings' level with stick
  • nose wheel balance 1 foot off the ground
  • smoothly through to full power
  • fly level until climb speed (60kts)



3. After Takeoff

  • raise nose to maintain climb speed (60kts)
  • trim



4. 500ft AGL Point

  • select Ref point 90° off the nose
  • turn onto crosswind leg
  • check aircraft is tracking 90° to the runway



5. Turning Downwind

  • select Ref point 90° off the nose
  • turn onto downwind leg
  • check aircraft is tracking parallel to the runway
  • radio call



6. Turning Base leg

  • when threshold is 130° off the nose
  • select Ref point 90° off the nose
  • turn onto base leg
  • check aircraft is tracking 90° to the runway



7. Turning Final

  • anticipate extended runway centre line
  • turn onto final approach
  • check aircraft is tracking on final approach path.



8. Final Approach

  • check approach profile
  • maintain descent speed (60kts)
  • power to make the threshold



9. Landing

  • set power (3000 RPM)
  • round out (2 x aircraft height)
  • hold off 1 foot off the ground
