Form of the Earth

Axis and Direction of Rotation

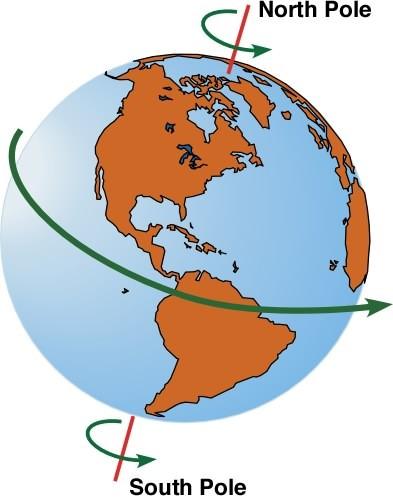

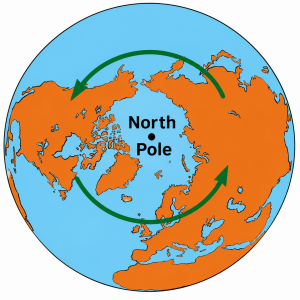

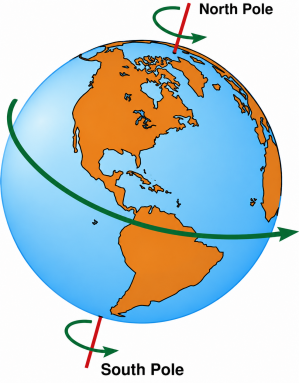

  • Looking down at the earth onto the North Pole, it can be seen to spin around its polar axis in an anti-clockwise direction.
  • The polar axis passes through two points, the North geographic pole (True North) and the South geographic pole (True South).




Geographic and Magnetic Poles

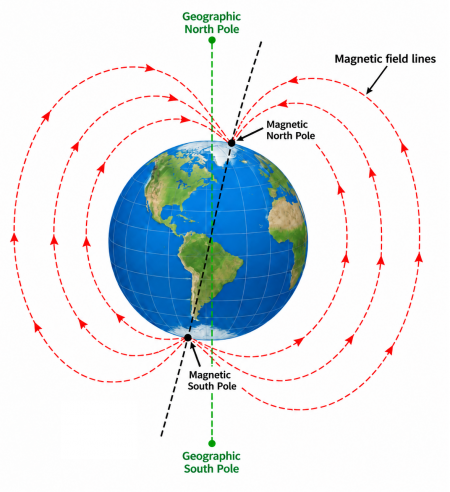

  • The earth acts as a huge magnet, and its lines of magnetic force are sufficiently strong enough to influence the direction of a freely suspended magnetic needle.
  • The poles of the magnet earth are known as the North magnetic pole and the South magnetic pole.
  • At the present time, the north magnetic pole is in the general area of Hudson's Bay in Canada, and the south magnetic pole is near South Victoria land in Antarctica.
  • The lines of magnetic force joining these two poles run roughly north-south.
  • The actual direction now shown by the magnet is called magnetic north, and this is the datum used to measure magnetic direction.
  • The geographic and magnetic poles are not situated in the same place.
  • They are about 1000 miles away from each other.
  • The North and South geographic poles are fixed locations which the earth rotates about while the magnetic poles will move in a full circle around the geographic poles roughly every 900 years.
