8.4 Weather Maps

8.4.2 Identify the following features found on surface weather maps:

8.4.4 Explain the most common weather characteristics of each feature.

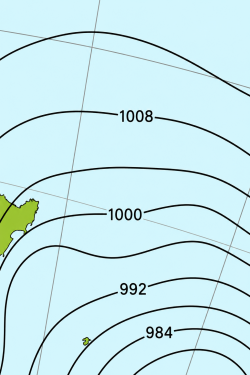

(a) isobars;

Isobars are lines on a weather map, connecting points of equal atmospheric pressure.

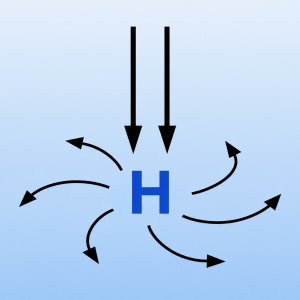

(b) anticyclone (“high”);

In the Southern Hemisphere, an anticyclone is an anticlockwise circulation of winds around a central region of high atmospheric pressure,

  • It has higher pressure at its center than the areas around it.
  • Air sinks down.
  • The winds blow away from high pressure.
  • A blue H denotes the location of a high pressure system.
  • characterised by fine weather with light winds



(c) depression (“low” or “cyclone”);

In the Southern Hemisphere, a depression is a clockwise circulation of winds around a central region of low atmospheric pressure.

  • It has lower pressure at its center than the areas around it.
  • Air rises up.
  • winds blow toward the low pressure.
  • a red L denotes the location of a Low pressure system.
  • characterised by poor weather and strong winds



(d) ridge of high pressure;

  • A ridge is an extension of a high.
  • similar conditions to a high



(e) trough of low pressure;

  • A trough is an extension of a low.
  • similar conditions to a low



(f) col;
